Whether it is deterministic, band-limited, or stochastic, seismic inversion can bear many names depending on the algorithm used to produce it. Broadly, inversion converts reflectivity data to physical properties of the earth, such as acoustic impedance (AI), the product of seismic velocity and bulk density. This is crucial because, while reflectivity informs us about boundaries, impedance can be converted to useful earth properties such as porosity and fluid content via known petrophysical relationships.

Lancaster and Whitcombe (2000) published a fast method for band-limited inversion of seismic data known as colored inversion (CI) that generated widespread interest among interpreters.[1] Recognizing that the popular sparse-spike inversion process could be approximated by a single operator, yielding relative impedance via simple convolution with the reflectivity data, the authors showed that this operator can be derived from well logs. Like other inversions, CI can help remove the smearing effects of the seismic wavelet and enhance features such as thin beds and discontinuities. What's more, since CI is directly linked to seismic data, the relative impedance it produces can be used as a base for comparison with other inversion to see what kind of information is introduced by numerical constraints or the low-frequency model.

In this tutorial, we follow the steps presented by Lancaster and Whitcombe in their 2000 expanded abstract to achieve the so-called “fast-track colored inversion.”[1] Using open-source algorithms, we describe all the steps to go from reflectivity data to inverted cubes:

  1. Fit a function to the log spectrum(s).
  2. Get a difference spectrum by substracting the seismic spectrum.
  3. Convert the difference spectrum to an operator.
  4. Convolve the operator with the stacked seismic.
  5. As a quality control (QC) step, check the residuals by comparing log and AI section spectrums.

The idea of this tutorial is to achieve a CI without any external software, just Python code with the NumPy and SciPy libraries. You can read and run the code for yourself from the repository at This tutorial focuses on presenting the whole workflow in the simplest fashion rather than trying to optimize parameters to recover interpretable features. Prior to running the workflow on your data, noise attenuation should be performed to ensure that the inversion process recovers frequencies associated only with the earth.

The data set

For our demonstration, we use one inline from the 1987 Dutch F3 volume (Figure 1) plus the AI log from the F02-1 well. Good descriptions of the geologic setting of this data set can be found in Sørensen et al. (1997) and Overeem et al. (2001).[2][3] We use the dip-steered median filter stacked data set to get reduced noise on our input.

Figure 1. For our demonstration, we use one inline from the 1987 Dutch F3 volume (Figure 1) plus the AI log from the F02-1 well. Good descriptions of the geologic setting of this data set can be found in Sørensen et al. (1997) and Overeem et al. (2001).[2][3] We use the dip-steered median filter stacked data set to get reduced noise on our input.

Fit a function to the log spectrum

Walden and Hosken (1985) observed that the reflectivity sequences in sedimentary basins display a logarithmic decay in amplitude as frequency increases.[4] For the first step of our inversion, we look at the reflectivity spectrum and make sure it behaves as predicted. We load the F02-1 well, convert it to the time domain, and calculate the spectrum (Figure 2).

n_log = AI_f021.shape[0]

k_log = np.arange(n_log-1)

Fs_log = 1 / np.diff(time_f021/1000)

T_log = n_log / Fs_log

freq_log = k_log / T_log

freq_log = freq_log[range(n_log//2)]

spec_log = np.fft.fft(AI_f021) / n_log

spec_log = spec_log[range(n_log//2)]

Figure 2. F02-1 well data. (a) AI log and (b) calculated power spectrum.

We would like to simplify the spectrum, so we proceed to a regression. To make the process more robust, CI packages offer you the option of averaging this spectrum over all the available wells, but we can skip that as we are working with only a single well. To proceed to a linear regression, we define two simple functions, one that serves as the linearization of the problem and one for the error function. We then use scipy.optimize to find the best fit, shown in Figure 3.

def linearize(p, x): return p[0] * x**p[1]

def error(p, x, y): return np.log10(y) - np.log10(linearize(p, x))

args = (freq_log[1:2000], np.abs(spec_log[1:2000])) qout, success = optimize.leastsq(error, (1e5, -0.8), args=args, maxfev=3000)

Figure 3. F02-1 well spectrum approximated by a linear function in log space.

Compute the difference

Now we have a continuous function that mathematically approximates the well-log spectrum. The next major step of the workflow is to compute an operator that is representative of the difference between the log spectrum and the seismic spectrum.

We first define some boundaries to our modeled spectrum in the frequency domain. This is a critical part that will have great influence on the end result. We define a simple function to generate a 50-points Hanning-shaped taper at both ends of the spectrum; the result is shown in Figure 4. Then we take seismic traces at the well location, average them, and repeat the procedure we did on the well to get the spectrum. Figure 4 shows the resulting modeled spectrum. In this example, taper windows of 0–5 Hz and 100–120 Hz have been defined. It is important to note that our end result will be influenced greatly by this choice, and care should be applied at this stage.

Figure 4. Comparison of well log, seismic, and modeled frequency power spectrum.

After this step is completed, we simply substract the seismic spectrum from our modeled spectrum (Figure 5).

Figure 5. (a) Resulting difference spectrum. (b) Associated operator.

Convert to an operator

Now, continuing with Lancaster and Whitcombe's methodology, we can derive an inversion operator.[1] We move back to the time domain with an inverse Fourier transform, then shift zero time to the center of the time window. Finally, we rotate the phase by taking the quadrature of the signal, represented by the imaginary component and shown in Figure 5.

gap = spec_log_model - spec_seismic_model

operator = np.fft.ifft(gap)

operator = np.fft.fftshift(operator)

operator = operator.imag

Convolve operator with seismic

Once the operator is calculated a simple trace-by-trace convolution with the reflectivity data is needed to perform CI. NumPy's apply_along_axis() applies any function to all columns of an array, so we can pass it the convolution:

def convolve(t): return np.convolve(t, operator, mode='same')

ci = np.apply_along_axis(convolve, axis=0, arr=seis)

Since the relative impedance result contains no low frequencies, it does not inform us about trends, so it makes more sense to look at the result in a single formation. We will focus on an area of interest of about 300 ms in thickness between two horizons; Figure 6 presents the resulting relative impedance section scaled (0–1) in this area.

Figure 6. Relative impedance result in a single stratigraphic unit.

Check the residuals

To make sure we did a good job defining our operator, we now look at the spectrum from the relative impedance result at the well location to see if we achieved a good fit with the well-log spectrum (Figure 7). It is to be noted that this fit was achieved with some arbitrary decisions, and the workflow could be iterated upon to try to minimize the difference between the two spectrums.

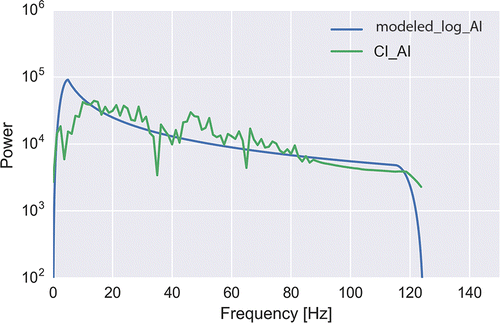

Figure 7. QC of the CI workflow by comparison between input and output spectrums.


We have presented a straightforward application of CI using only Python with the NumPy and SciPy libraries. This open-source workflow is documented at It is called a “robust” process in the literature, but it is somewhat sensitive to the chosen frequency range. There are also choices to be made about the window of application and the number of traces used to compute the seismic spectrum. Notwithstanding all this, the process is simple and fast and yields informative images to interpreters.
