Overview

The 2007 BP TTI Velocity-Analysis Benchmark dataset was created by Hemang Shah and provided courtesy of BP Exploration Operation Company Limited ("BP"). It was originally used at the velocity-analysis workshop at the 2010 EAGE meeting in Barcelona, Spain.

The unaltered data is redistributed following the terms of use described later on this wiki page.

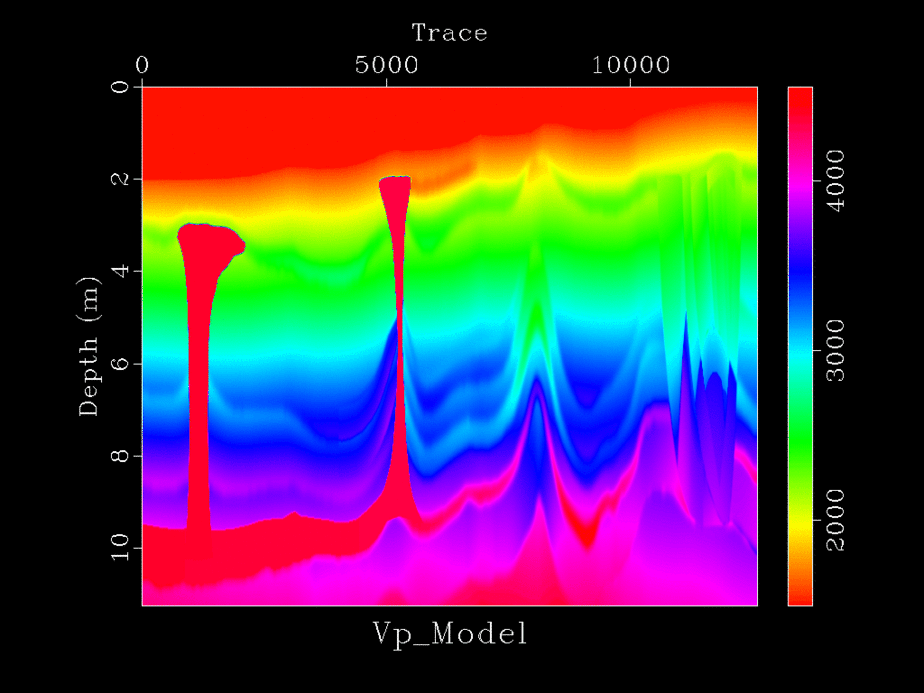

Vp Modelbptti2007.gif


How to obtain a copy of the data

The easiest way to obtain a copy of the 2-D synthetic is to use the Madagascar processing scripts below or the links below.

Terms of use

By using these data, you agree to the following disclaimer:

LEGAL DISCLAIMER


If you use this dataset in a presentation or publication, you must acknowledge that it was created by Hemang Shah and is provided courtesy of BP Exploration Operation Company Limited ("BP").

By using these data, you agree to the following disclaimer:

NO WARRANTIES.


YOU ACCEPT THAT THE DATASET AND ANY ASSOCIATED MATERIALS ("MATERIALS") IS PROVIDED ON "AS IS" BASIS. YOU ASSUME ALL RESPONSIBILITY FOR THE RESULTS OR USE OF THE MATERIALS. BP MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND INCLUDING, BUT NOT LIMITED TO, THE ACCURACY, RELIABILITY, FITNESS FOR PURPOSE OR USABILITY OF THESE MATERIALS. ANY USE WHICH YOU MAKE OF THE MATERIALS IS AT YOUR OWN RISK.

DISCLAIMER.


BP and its group companies make no warranties to you, whether express, implied or statutory, with regard to the dataset, including its accuracy, completeness or fitness for any particular purpose.

All implied warranties are hereby disclaimed to the extent permitted by law, including any implied warranties of quality, fitness for a particular purpose or use of care and skill.


DAMAGE WAIVER.


BP and any of its group companies and their officers, directors, employees, shareholders and agents, exclude all liability and responsibility for any amount or kind of loss or damage that may result to you or a third party (including without limitation, any direct, indirect, punitive or consequential loss or damages, or any loss of income, profits, goodwill, data, contracts, use of money, or loss or damages arising from or connected in any way to business interruption, and whether in tort (including without limitation negligence), contract or otherwise) in connection with the dataset, its use, inability to use or the results ofuse of the dataset.

You agree to indemnify BP and its group companies in respect of any claims against any of them resulting from your use of the dataset.

REDISTRIBUTION.


YOU AGREE THAT IF YOU SHARE ANY OR ALL OF THESE DATA WITH ANY OTHER PERSON OR ORGANIZATION, YOU WILL ALSO INCLUDE ALL OF THE ASSOCIATED DOCUMENTATION ORIGINALLY INCLUDED WITH THE DATA AND PROVIDED TO YOU, INCLUDING THIS NOTICE, AND THAT THE RECEIVING PARTY ALSO AGREES TO ABIDE BY THESE TERMS AS A CONDITION OF ITS USE. IF THE DATA THAT YOU PASS ON HAS BEEN MODIFIED IN ANY WAY FROM ITS ORIGINALLY DISTRIBUTED STATE, THE MODIFICATION MUST BE DOCUMENTED, AND THAT DOCUMENTATION INCLUDED ALONG WITH THE DATA.


Madagascar processing scripts

If you have installed the Madagascar development release, you have scripts to download and display the data. You may need to update your copy of the Madagascar installation to ensure you have contents added after March 2015. To update your copy of Madagascar enter this dialog into a terminal window:

cd $RSFSRC/book/data
svn update

To run the processing scripts enter this dialog into a terminal window:

cd bptti2007/fetch
scons view

Download data clicking links or command line wget

Either click on the hypertext links, or paste the wget commands into a unix terminal window:
wget http://s3.amazonaws.com/open.source.geoscience/open_data/bptti2007/Anisotropic_FD_Model_Shots_part1.sgy.gz
wget http://s3.amazonaws.com/open.source.geoscience/open_data/bptti2007/Anisotropic_FD_Model_Shots_part2.sgy.gz
wget http://s3.amazonaws.com/open.source.geoscience/open_data/bptti2007/Anisotropic_FD_Model_Shots_part3.sgy.gz
wget http://s3.amazonaws.com/open.source.geoscience/open_data/bptti2007/Anisotropic_FD_Model_Shots_part4.sgy.gz
wget http://s3.amazonaws.com/open.source.geoscience/open_data/bptti2007/Anisotropic_FD_Model_VSP.tar.gz
wget http://s3.amazonaws.com/open.source.geoscience/open_data/bptti2007/DatasetInformation_And_Disclaimer.txt
wget http://s3.amazonaws.com/open.source.geoscience/open_data/bptti2007/ModelParams.tar.gz
wget http://s3.amazonaws.com/open.source.geoscience/open_data/bptti2007/OtherFiles-2.tar.gz
wget http://s3.amazonaws.com/open.source.geoscience/open_data/bptti2007/README_Modification.txt
